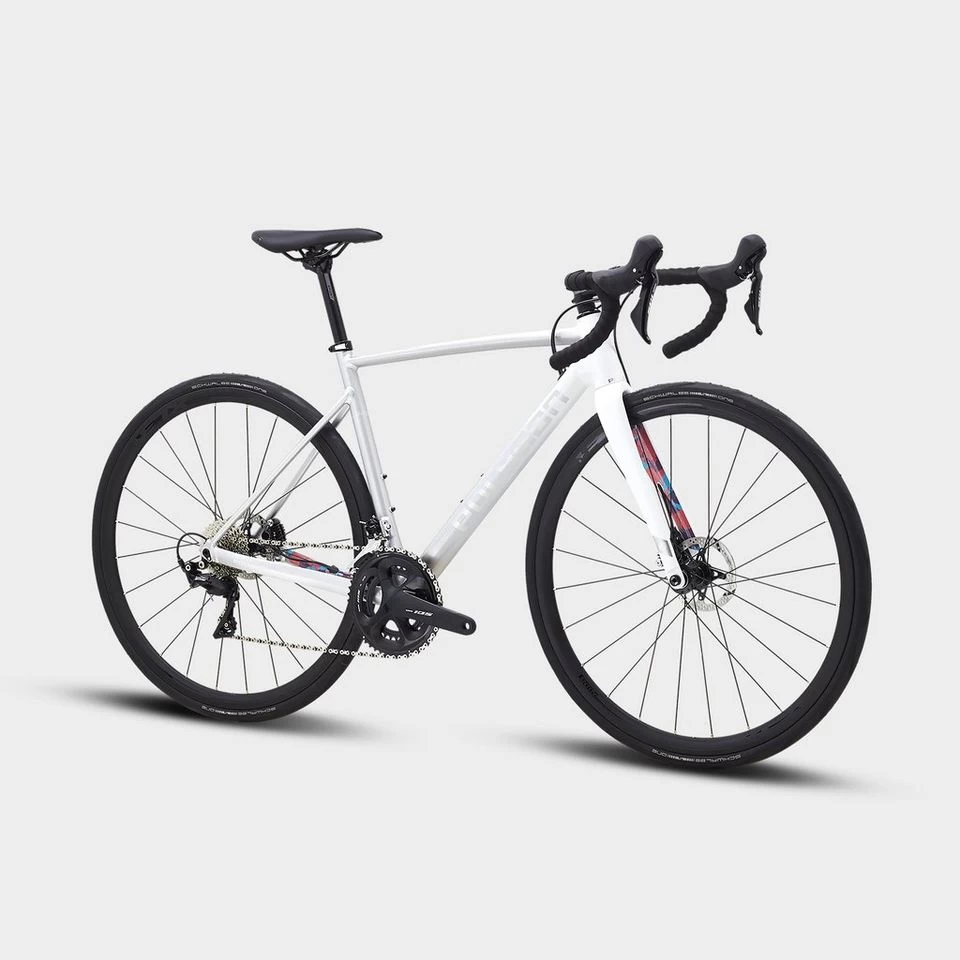

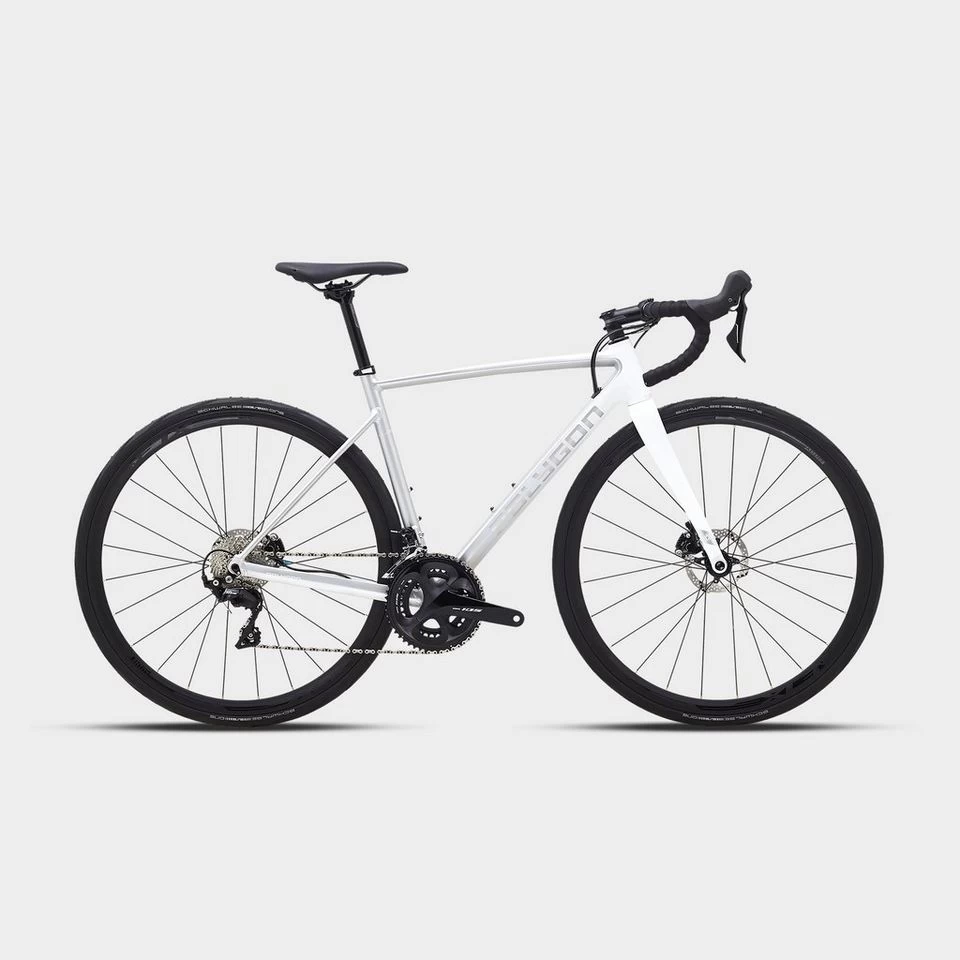

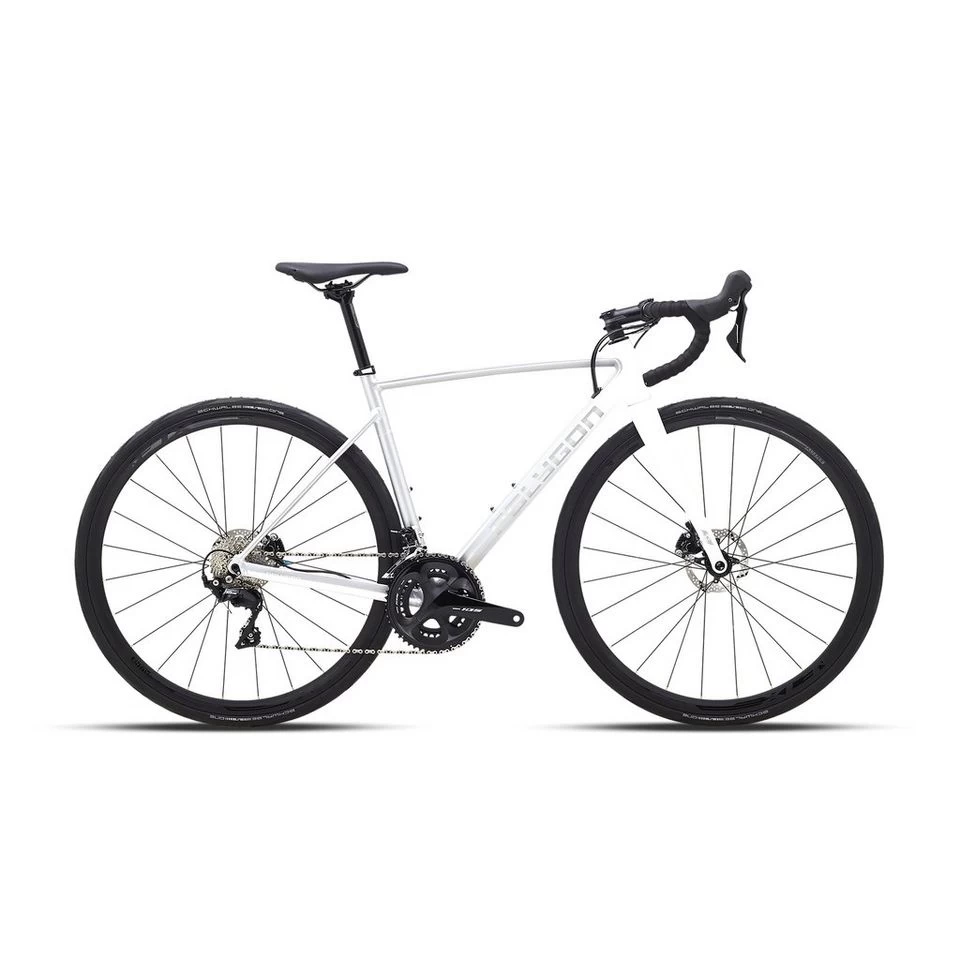

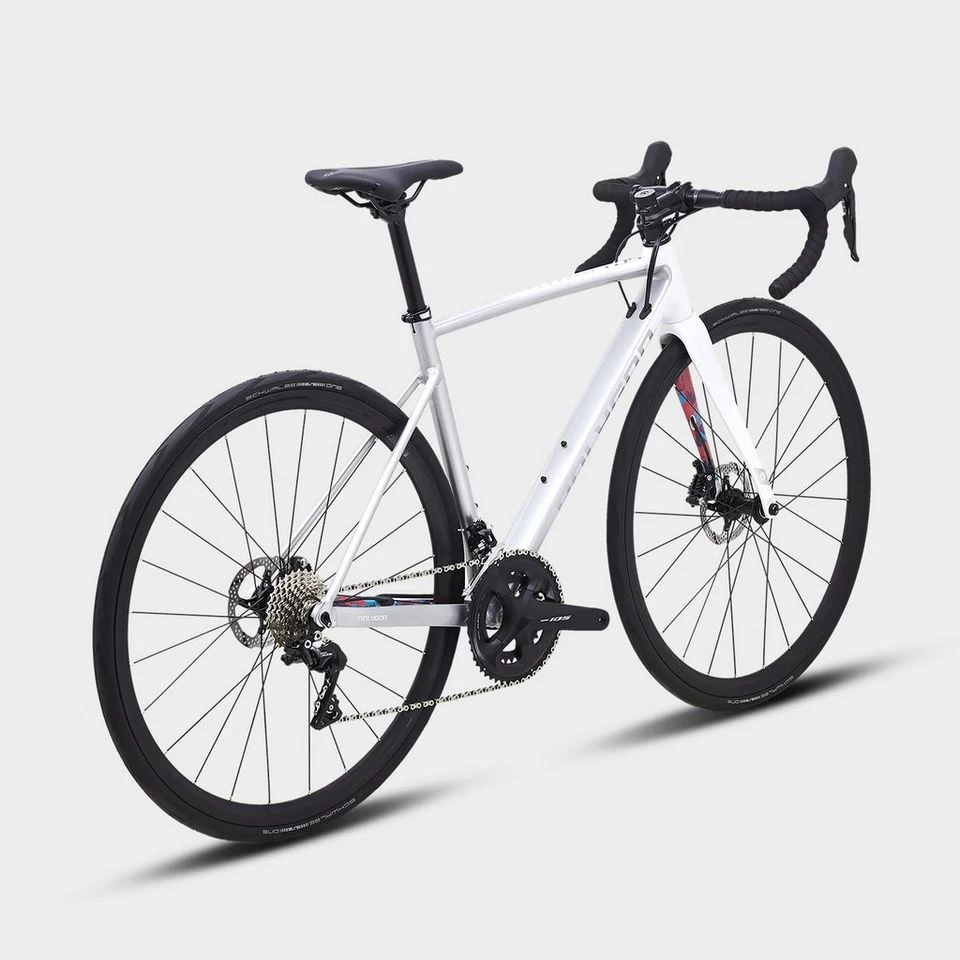

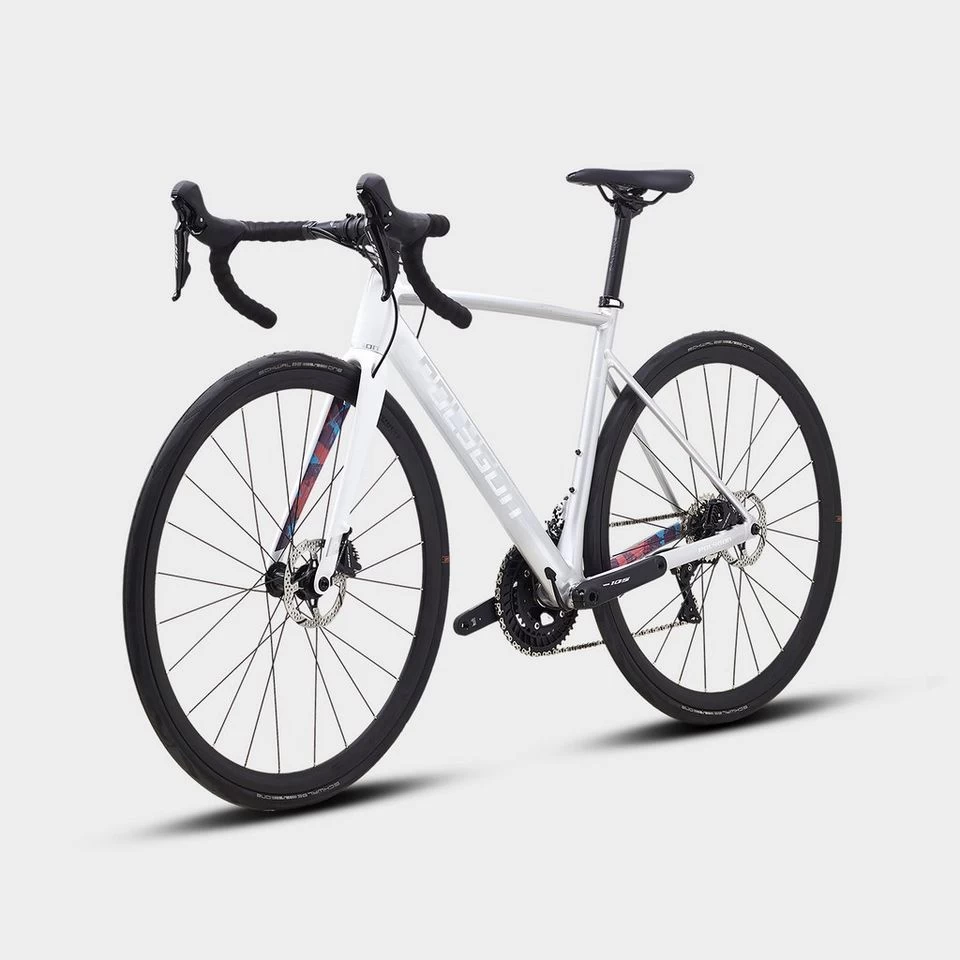

Polygon Strattos S5 Disc

The perfect all-rounder bike designed for speed and accuracy.

The perfect all-rounder bike, The Polygon Strattos S5 Disc has been built with an alloy frame and a carbon fork, designed with the favoured geometry for powerful pedalling. Whether it’s a casual bike ride in the park or a race that needs winning, this bike has been made for it all. Fitted out with disc brakes for powerful and fade-free braking in all conditions, the S5D is well equipped for any race.

About Polygon

Polygon are a world-renowned bike manufacturer with over 25 years of cycling expertise. Producing close to a million bikes a year out of their state-of-the-art manufacturing facilities, their commitment to innovation and craftsmanship has seen them pick up numerous industry awards and become the brand of choice for leading professionals. You’ll be in good company when you ride a Polygon.

• Frameset: ALX ALL-ROUND, HUB SPACING: 12x142mm
• Fork: ACX ALL-ROUND, TAPER 1-1/8″ TO 1-1/2″
• Shifter: SHIMANO 105 ST-R7020, 2×11-SPEED DUAL CONTROL LEVER
• Crank: SHIMANO 105 FC-R7000 50/34T, 165mm (XS) / 170mm (S, M, L) / 172.5mm (XL), MAX: 53/39T
• Cassette: SHIMANO 105 CS-R7000 11-30T
• Rear Derailleur: SHIMANO 105 RD-R7000-SS DIRECT ATTACH
• Drivetrain: Shimano 105 series
• BB: SHIMANO BB-RS500
• Chain: KMC X11-1
• Pedal: ALLOY CAGE & BODY W/ REFLECTOR
• Saddle: ENTITY, STEEL ø 7mm
• Seatpost: ENTITY SPORT ALLOY, DXL: 27.2 X 350mm, Offset: 15mm
• Handlebar: ENTITY SPORT ALLOY, W: 400MM (XS, S, M) / 420MM (L, XL), BB: 31.8mm, R/D: 124mm, B/R: 80mm
• Handlestem: ENTITY SPORT ALLOY, EXT: 90mm (XS, S) / 100mm (M, L) / 110mm (XL), BB: 31.8mm, R/D: 7degree
• Headset: ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6, IS 52/40
• Wheel Set: ENTITY XL3 DISC W/ TUBELESS RIM TAPE
• Wheel Size: 700C
• Tire: PERFORMANCE TIRE 700x28C
• Rim: 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY
• Hub F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS 6-BOLTS
• Hub R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS 6-BOLTS
• Spokes: ENTITY STAINLESS
• Brake Lever: SHIMANO 105 ST-R7020
• Brake Caliper: SHIMANO 105 BR-R7070 HYDRAULIC
• Rotor: TRP TR-29 140mm 6-BOLTS
• Weight: 10.2kg (Size M no pedal)

Please Note: Due to ongoing issues in the supply chain, this bike is subject to specification changes without notice. Any changes made will be using equivalent or higher quality parts.

**Some minor assembly is required. See our video (below) or consult our assembly guide for assistance.

Unfortunately, we are not able to process faulty or warranty bike returns through our warehouse. If your bike develops a fault, please take it to your nearest GO Outdoors store where we have a full workshop and trained mechanics who will be able to assist you.
Please note, this excludes Hathersage and Southport stores.
